6500 CD/m2 Nationstar Outdoor Screen LED Display 960*960 LED Panel
For Advertising
P10 LED Outdoor Screen Quick Detail:
1. 5.76 x 2.88 m screen size;
2. 576 x 288 pixels;
3. 960 x 960 mm cabinet size;
4. About 34 kg/pc;
5. CB/CE/UL standard;
6. More than 1,200 Hz refresh rate.
P10 LED Outdoor Screen Detail Description:
The led display size is 5760 x 2880 mm, with Nationstar LED, 1.6 mm thickness PCB;
Each cabinet is 960 x 960 mm, equipped with 4 pcs Meanwell RSP-320-5 power supplies, 4
pcs cooling fans,
Linko power and signal connector;
The brightness is around 6,500 nits by testing with luminance
colorimeter.
P10 LED Outdoor Screen Application:
This is for outdoor advertising, with high brightness. It is no
problem to see under strong direct sunlight.
P10 LED Outdoor Screen Specifications:
| Type | PH10 |
LED Type | SMD3535 |
LED | Nationstar |
PCB | New Light, 1.6 mm thickness |
LED Module Pixel | W 32 × H 16 dots |
LED Module Size | W 320 × H 160 mm |
Cabinet | Iron waterproof cabinet with back door |
Cabinet Size | W 960 × H 960 mm |
Screen Size | W 5.76 × H 2.88 m |
Screen Resolution | W 576 × H 288 pixels |
Drive Mode | 1/2 scan constant current |
Luminance | 6,500 nits with testing by luminance colorimeter |
View angle | 120 degrees |
Power Supply | Meanwell RSP-320-5 |
Control Method | Synchronous control |
Controller | Novastar |
Refresh rate | ≥1,200 Hz |
Outdoor Screen LED Display Type:
Advertising LED display screen
LED display, with its unique advantages, has gradually replaced the
traditional billboards, light boxes, etc.
LED screen advertising has become a new force in the media
industry. Traditional advertising can only
show pictures, But LED screen can perfect combine text, pictures,
video, and sound with high resolution,
high brightness and full color!
Stadium LED display screen
Led screen,LED display or LED video wall are used in stadium to
live show, video play, slow motion playback,
specific lens display, sports score information presentation, as
well as commercials advertising.
The common cases are football field led display fence, basketball
stadium center led screen, and screens in
swimming stadium, Athletics stadium, etc.
Transportation LED display screen
In the busy streets of city or on the highway, we can see LED
display screenfor advertising use, these screens
are generally controlled by a unified control center, in
conjunction with other traffic monitoring equipment, automatic
display traffic flow or traffic jam information.
Our service
Pre-sale service:
1. Inquiries will be replied within 24 hours.
2. Market research and forecast for the customer.
3. Provide unique and professional solutions based on customer's
requirement.
4. Datasheet and samples offered.
5. Other required services such as special packing design, factory
visiting and so on.
In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during
production.
3. Free spare parts provided.
After-sale service:
1. Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
2. Warranty: 12-24 months.
3. Free technician training.
4. Full set of documents free of charge, which including LED
display installation guidance, software operation manual,
easy maintenance manual and control system software CD and so on.
More image of LED outdoor screen:
P10 outdoor LED display module
LED screen panel

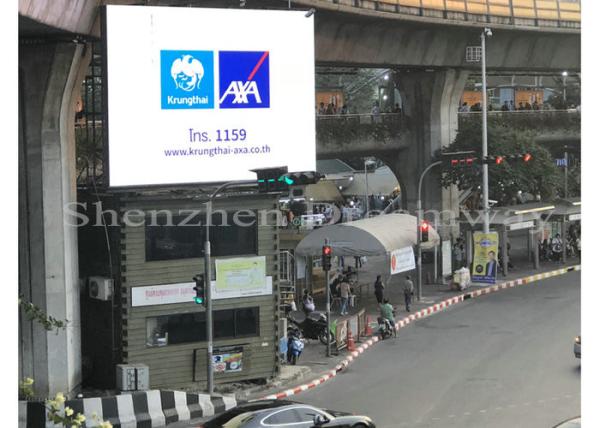

LED outdoor screen application
