4 mm Outdoor Digital Signage LED Signs Billboard 64 × 32 pixels
Module Resolution
LED Signs Billboard Quick Detail:
1. 62,500 dots per square meter;
2. SMD2525 LED type;
3. About 6,500 CD/m2;
4. 1024 × 1280 mm screen size;
5. 256 × 320 pixels in total;
6. Controlled by 3G / WIFI.
LED Signs Billboard Detail Description:
This is P4 type, with 62,500 pixels per square meter, high
brightness about 6,500 nits;
Wheels could be added at the bottom of the screen for easy
transportation;
It is equipped with Meanwell power supply with CE / CB / UL
standard.
LED Video Wall Application:
Such LED ad player could be put on shopping mall, metro station,
bus station, etc, for ads.
Specifications:
| Type | PH4 |
LED Type | SMD2525 |
LED Composition | 1R 1G 1B |
Screen Size | W 1.024 × H 1.28 m |
Resolution | W 256 × H 320 pixels |
Module Size | W 256 × H 128 mm |
Cabinet Size | W 1300 × H 1745 × D 150 mm |
Cabinet Weight | about 42 kg/m2 |
Cabinet Material | Iron waterproof cabinet with back door |
LED Module Quantity | W 4 × H 10 = 40 pcs |
Cabinet Quantity | 1 pc |
Best Viewing Distance | 4 ~ 40 m |
Driving Mode | 1/8 scan constant current |
Luminance | 6,500 nits |
View angle | 120 degrees |
Power and Signal Connector | Linko |
Power Supply | 88~264 VAC |
Brand | Meanwell |
Control Card | Xixun |
Package | Plywood Case |
Outdoor LED Billboard Advantage:
Strong visual impact
LED signs ads with large size, dynamic effect and integrated sound
and picture can touch the audience’s
senses in all directions and effectively convey information to
guide elimination.
Wide coverage
Outdoor LED display are generally installed in shopping malls and
other areas with heavy traffic. Through
high frequent communication with user groups, we can stimulate
consumers’ strong desire to buy and
improve brand awareness.
Long release period
Outdoor LED panel ads can be played 24 hours. It is easier to be
seen by the audience and can better guide
the potential customers. Merchants can achieve better publicity
effect with less cost.
Low antipathy rate
Outdoor LED billboard advertising can be broadcast to more
audiences in real and timely manner through live
broadcast technology. It includes specifically topics, columns,
variety shows, animations, radio dramas and
TV series etc. Which are rich in content and avoid the conscious
avoidance of advertising audiences.
Energy conservation and environment protection
LED signs LED screen light element is LED, because the power of
single LED is very low, generally 0.04-0.08 w,
the power several times lower, but the effective is much better.
LED display screen is made of environment-friendly
material, which is recyclable and will not cause pollution and
damage to the environment due to large use.
Our service
Pre-sale service:
1. Inquiries will be replied within 24 hours.
2. Market research and forecast for the customer.
3. Provide unique and professional LED display solutions based on
customer's requirement.
4. Datasheet and samples offered.
5. Other required services such as special LED panel packing
design, factory visiting and so on.
In-sale service:
1. Tracking producing procedures all the time.
2. Provide LED screen photos and videos as per customer's
requirement during production.
3. Free LED panel spare parts provided.
After-sale service:
1. Complaint respond period not exceed 24 hours; LED video wall
maintenance guidance and problem
solution supplied in 48 hours.
2. Warranty: 12-24 months.
3. Free technician training.
4. Full set of documents free of charge, which including LED panel
installation guidance, software operation
manual, easy maintenance manual and control system software CD and
so on.
More image of outdoor LED signs:
P4 LED screen module
P4 LED panel module back view

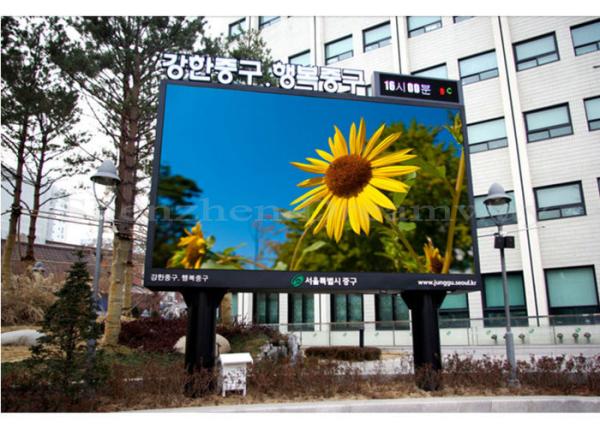

Outdoor LED billboard application
LED screen package
