P3 ICN2038S Digital Signage Led Display 576 × 576 mm LED Panel for
TV station
P3 LED Signs Screen Quick Detail:
1. 192 × 192 mm LED module;
2. 576 × 576 mm cabinet size;
3. 192 × 192 pixels per cabinet;
4. Hanging type;
5. Meanwell RSP-320-5 power;
6. Flight case package.
P3 LED Signs Screen Detail Description:
The LED panel is die-casting aluminum with handle and lock, easy to
assemble and disassemble;
This LED display with high refresh rate drive IC is used to improve
refresh rate;
3% spare parts of LED module, power supply, controller are provided
with free charge.
P3 LED Signs Screen Specifications:
Type | P 3 |
LED | Black |
LED Type | SMD2121 |
Module Quantity | W 18 × H 12 = 216 pcs |
LED Module Pixel | W 64 × H 64 dots |
Cabinet Quantity | W 6 × H 4 = 24 pcs |
Cabinet Size | W 576 × H 576 × D 90 mm |
Material | Die-casting aluminum cabinet with locks and handle |
Drive Mode | 1/32 scan constant current |
Luminance | 1,300 nits |
Refresh Rate | ≥1,200Hz |
Out of Control Dot Rate | ＜0.0001 |
Earth Leakage Current | ＜2mA |
MTBF | ＞5,000 hours |
LED Life Time | ＞100,000 hours |
Package | Flight case |
Power Supply | Meanwell |
Input Signal | DVI, VGA, HDMI, S-VIDEO, etc |
Connector | Neutrik |
Indoor LED wall Feature:
Moisture proof, Dust proof, Anti-Striking, Anti-static:
Indoor LED video wall adopts a completely new technology, with
unique features for moisture-proof, Dust-proof,
Anti-Striking, LED screen IP grade in the front can reach IP43.
Flat LED surface with no gap. You can wipe away
the dust and water spots from the LED surface directly, easy for
cleaning and maintenance.
Fast Heat Dissipation
This kind of LED display LED chip was encapsulated directly on the
PCB board, the heat can dissipate through
the PCB board and aluminum plate over the LED panel. It realizes
the mode of heat dissipation from a point to
a surface, makes the LED screen heat dissipation more faster and
heat conduction efficiency much higher.
It effectively weakens light attenuation of LED chip, and prolongs
the life span of the LED screen.
Indoor rental LED display application:
The rental LED display popular used in stage rental, singing and
dancing event evenings, various conferences,
exhibitions, stadiums, theaters, auditoriums, lecture halls,
multi-purpose halls, conference rooms, interpretation
halls, di bars, night clubs, high-end entertainment discos,
important cultural events in various provinces and cities.
FAQ:
1. How long could I receive the inquiry reply?
A: You will get a reply within 24 hours.
2. What kind of led display do you offer?
A: Different product offer different time frame warranty, but all
product here we offer 1 year at least warranty
3. How is the after sales service?
A: We have a professional team which is in all around the world,
also a service hot-line dealing with your
complains and feedback. We also offer 24-hour online service to
help you solve problems
4. How long will it take to deliver goods?
A: We will start preparing goods when we get your bank receipt. The
package will be shipped out in 1-2 working
days after we get your payment
More image of LED wall:

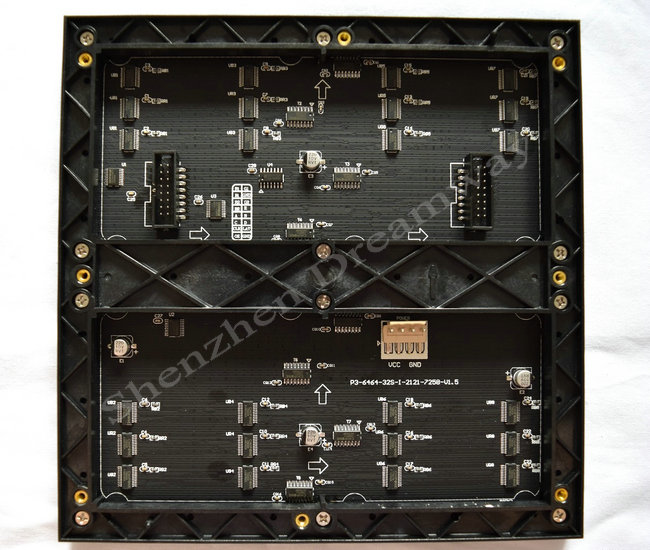

LED video wall module
LED panel
HD Indoor LED Screen Rental, P3 Indoor LED Screen Panel, Indoor LED Display Panel
