Indoor Church Customized LED Screen On Rent P3 High Resolution LED
Video Wall
Quick Detail:
1. 5.76 × 2.88 m screen size;
2. 1920 × 960 pixels total resolution;
3. 576 × 576 mm cabinet dimension;
4. 192 × 192 pixels per cabinet;
5. More than 1,920 Hz refresh rate;
6. Meanwell power supply.
Detail Description:
This P3 type is SMD2121 black LED, 192 by 192 mm per LED module,
high refresh rate IC;
Light weight die-casting aluminum cabinet, with each cabinet about
8.2 kg, 9.5 cm thickness;
Linko power and signal connector is used for connecting and
disconnecting easily.
Specifications:
Pixel Pitch | 3 mm |
LED Encapsulation | Kinglight |
LED Type | SMD2121 |
Screen Size | W 5.76 × H 2.88 m |
LED Module Pixel | W 64 × H 64 dots |
Cabinet Quantity | W 10 × H 5 = 50 pcs |
Cabinet Size | W 576 × H 576 × D 95 mm |
Material | Die-casting aluminum cabinet with locks and handle |
Drive Method | 1/32 scan constant current |
Drive IC | 2038 |
Refresh Rate | ≥1,920Hz |
Out of Control Dot Rate | ＜0.0001 |
Earth Leakage Current | ＜2mA |
MTBF | ＞5,000 hours |
LED Life Time | ＞100,000 hours |
Connector | Linko |
Power Supply | Meanwell, no fan inside |
Maximum Power | 450 W/m2 |
Controller | Novastar |
Application:
Full color LED display : Equally or compactly make the red, green,
blue color in one dot, equally
distribute at the panel, so make the whole display
Usually apply for physical sports, advertisement, bank, stock
exchange, station, port, marketplace,
telecommunication, department, school, monitor, restaurant,
entertainments.
FAQ:
1. How long could I receive the inquiry reply?
A: You will get a reply within 24 hours.
2. What kind of led display do you offer?
A: Different product offer different time frame warranty, but all
product here we offer 1 year at least warranty
3. How is the after sales service?
A: We have a professional team which is in all around the world,
also a service hot-line dealing with your
complains and feedback. We also offer 24-hour online service to
help you solve problems
4. How long will it take to deliver goods?
A: We will start preparing goods when we get your bank receipt. The
package will be shipped out in 1-2
working days after we get your payment
Detailed image:

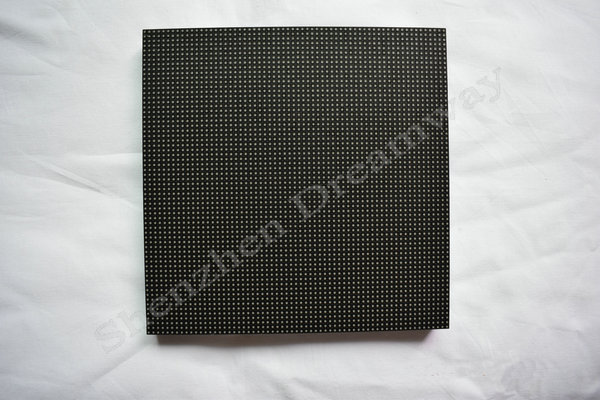

P3 indoor LED screen module
P3 indoor LED screen module
P3 rental LED screen back view

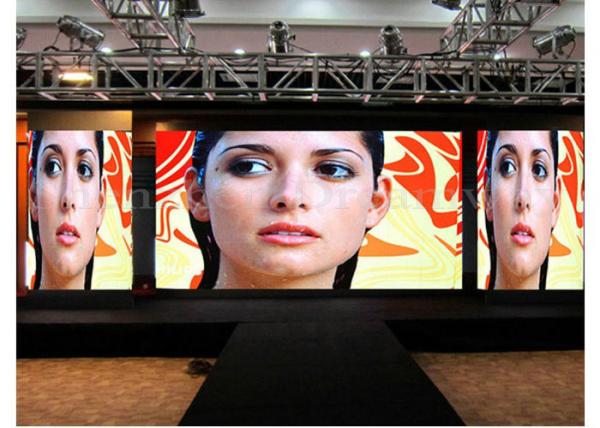

Rental LED screen application
