    P 10 Outdoor Waterproof Perimeter LED Screen 960mm x 960 mm LED Box

    Ask Lasest Price
    Brand Name : Dreamway
    Model Number : P10
    Certification : CE,ROHS
    Price : negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 2000sq.m/Month
    Delivery Time : 20 days after receiving the deposit
    • Product Details
    • Company Profile

    P 10 Outdoor Waterproof Perimeter LED Screen 960mm x 960 mm LED Box



    P 10 Outdoor Waterproof Perimeter LED Screen 960mm x 960 mm LED Box


    Quick Detail:

    1. DIP346 LED type;
    2. EPISTAR LED chip;
    3. MBI5024 driving IC;
    4. More than 7500 nits;
    5. 110° viewing angle;

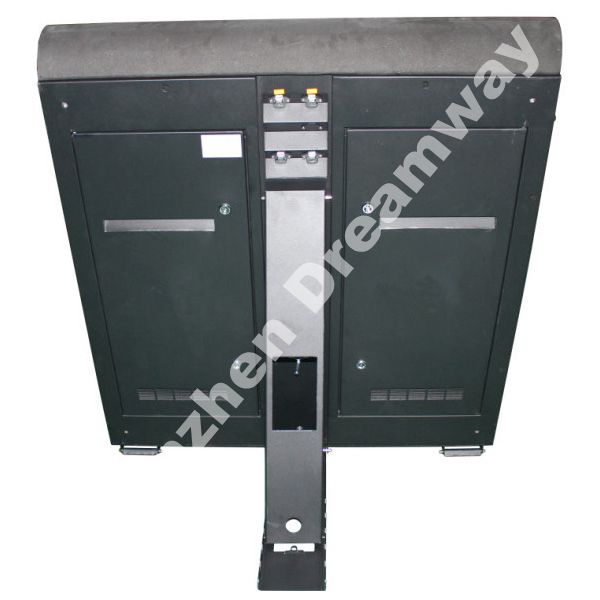

    6. Specially designed steel waterproof cabinet.


    Detail Description:

    Each LED box is with 960×960 mm, 96×96 pixels, more than 7500 CD brightness;
    This perimeter LED display is equipped with video processor and control PC;
    Flight box is used for package, no need to worry of transportation.


    Application:

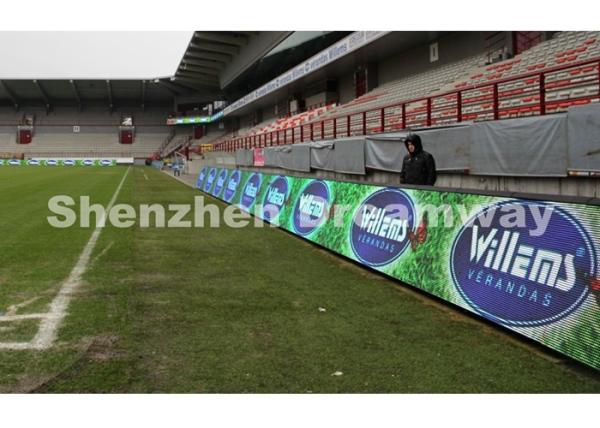

    Perimeter LED display is installed in soccer stadium for live broadcast or live football game.


    Specifications:

    Pixel Pitch

    10 mm

    LED Composition

    1R1G1B

    LED Chip

    EPISTAR

    Resolution

    10,000 dots/sq.m

    Module Pixel

    W 16 × H 16

    Module Size

    W 160 × H 160 mm

    Cabinet Material

    Steel waterproof cabinet, with support at the back

    Driving Method

    1/4 scan constant current

    Luminance

    ≥7500 nits/sq.m

    Refresh Rate

    1200~4000 Hz

    Out of Control Dot Rate

    <0.0001

    Earth Leakage Current

    <2mA

    MTBF

    >5,000 hours

    Life Span

    >100,000 hours

    Power Supply

    110V/60HZ and 220V/50HZ interchangeable

    Brand

    Meanwell

    Controller

    NovaStar

    Input Signal

    VGA, DVI, COMPOSITE VIDEO, S-VIDEO, HDMI
