    EPISTAR PH16 Outdoor Stadium LED Display with Meanwell Power UL Standard

    Ask Lasest Price
    Brand Name : Dreamway
    Model Number : P16
    Certification : CE,ROHS
    Price : negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 2000sq.m/Month
    Delivery Time : 20 days after receiving the deposit
    • Product Details
    • Company Profile

    EPISTAR PH16 Outdoor Stadium LED Display with Meanwell Power UL Standard


    EPISTAR PH16 Outdoor Stadium LED Display with Meanwell Power UL Standard


    Quick Detail:


    1. All EPISTAR LED chip;
    2. JXI5020 driving IC;
    3. More than 7,500 nits;
    4. 150 mm thickness of cabinet;
    5. About 53 kg per cabinet;
    6. Novastar LED controller.


    Detail Description:


    This type of P16 is composed of EPISTAR LED chip, above 7,500 nits per square meter;
    Cabinet is 150 mm depth, 1024 by 1024 mm, about 53 kg/pc;
    It is controlled by synchronization, with Novastar, high refresh rate.


    Application:

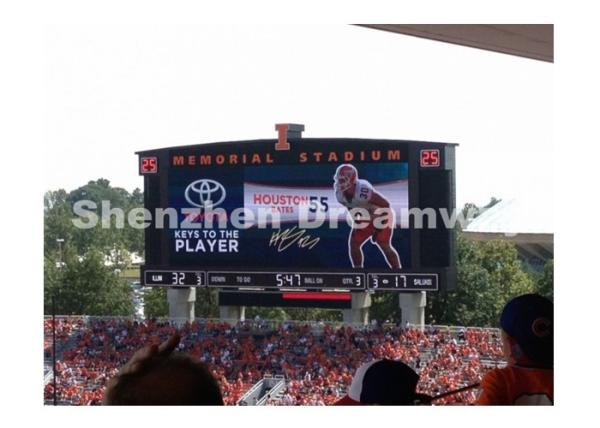

    Stadium LED display is used for big screen advertising, generally live broadcast the game in the stadium.


    Specifications:


    Model

    PH16

    LED Composition

    1R1G1B

    LED Type

    DIP546

    LED Chip

    EPISTAR

    LED Module Pixel

    W 16 × H 16

    LED Module Size

    W 256 × H 256 mm

    Cabinet Material

    Steel waterproof cabinet with back door

    Drive Method

    Static scan

    Brightness

    ≥7500 nits/sq.m

    Refresh Rate

    ≥1200 Hz

    Driving IC

    JXI5020

    Resolution

    3,906 dots/sq.m

    MTBF

    >5,000 hours

    LED Life Span

    >100,000 hours

    Power Supply

    110V/60HZ and 220V/50HZ interchangeable

    Software

    NovaStudio

    Package

    Flight / plywood case

    Warranty

    2 years



    P 16 mm Stadium LED Display, Large Stadium LED Display Screen, Soccer Stadium LED Display Board
