    PH10 EPISTAR LED chip Perimeter LED Display MBI5224 IC Big View Angle

    Ask Lasest Price
    Brand Name : Dreamway
    Model Number : P10
    Certification : CE,ROHS
    Price : negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 2000sq.m/Month
    Delivery Time : 20 days after receiving the deposit
    • Product Details
    • Company Profile

    PH10 EPISTAR LED chip Perimeter LED Display MBI5224 IC Big View Angle


    PH10 EPISTAR LED chip Perimeter LED Display MBI5224 IC Big View Angle


    Quick Detail:


    1. MBI5224 driving IC;
    2. Over 8,000 nits/sq.m;
    3. 120° view angle;
    4. Meanwell power supply;
    5. Protect cover above the cabinet;
    6. Video process equipped.


    Detail Description:

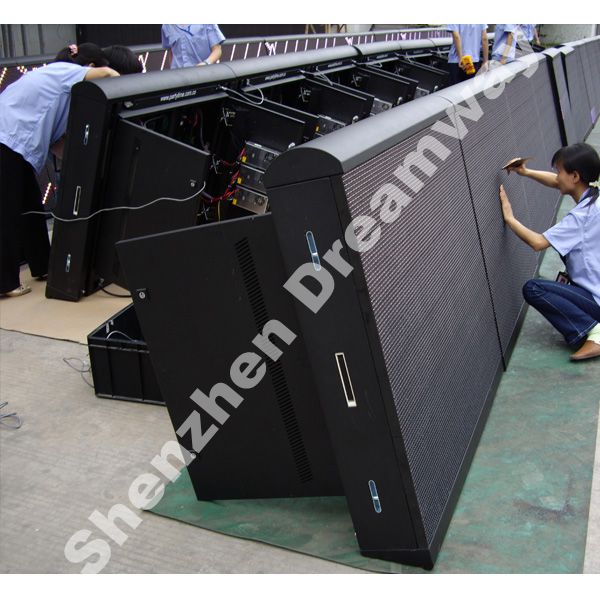

    The cabinet is steel made, with support at the back and protect cover above the cabinet;
    The brightness reaches to 8,000 CD, totally visible under sunlight;
    Meanwell brand power source used, good quality.


    Application:


    This perimeter LED display is to show ads around stadium, with soft LED module mask above, in case of damage to the sportsman.


    Specifications:


    Pixel Pitch

    10 mm

    LED Composition

    1R1G1B

    LED Chip

    EPISTAR

    Resolution

    10,000 dots/sq.m

    Module Pixel

    W 16 × H 16

    Module Size

    W 160 × H 160 mm

    Cabinet Material

    Steel waterproof cabinet

    Driving Method

    1/4 scan constant current

    Brightness

    ≥8000 nits/sq.m

    Refresh Rate

    1200~4000 Hz

    Drive IC

    MBI5224

    Earth Leakage Current

    <2mA

    MTBF

    >5,000 hours

    LED Life Span

    >100,000 hours

    Power Source

    110V/60HZ and 220V/50HZ interchangeable

    Brand

    Meanwell

    Power Connector

    YZK

    Video Processor

    VMS736
