    P5 SMD2727 Outdoor Advertising LED Display Led Video Wall Panels By 960 mm Cabinet

    Ask Lasest Price
    Brand Name : Dreamway
    Model Number : P5
    Certification : CE,ROHS
    Price : negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 2000sq.m/Month
    Delivery Time : 20 days after receiving the deposit
    • Product Details
    • Company Profile

    P5 SMD2727 Outdoor Advertising LED Display Led Video Wall Panels By 960 mm Cabinet


    P5 SMD2727 Outdoor Advertising LED Display Led Video Wall Panels By 960 mm Cabinet


    Quick Detail:

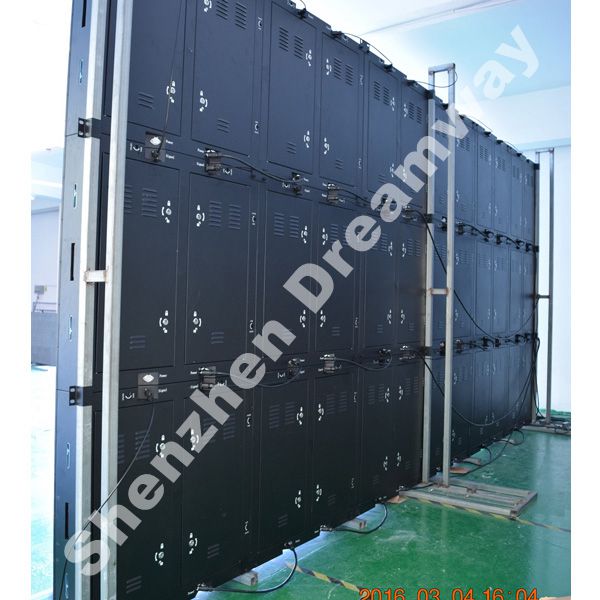

    1. 6 × 3 pcs cabinets;
    2. 192
    × 192 pixels per cabinet;
    3. 2 pcs receiving cards in 1 pc cabinet
    ;
    4. 4 pcs power supplies in 1 pc LED cabinet
    ;
    5. 4 pcs fans in 1 pc cabinet;
    6. Aluminum cabinet with handle
    .


    Detail Description:


    High brightness and resolution, with 8,000 nits, 1152 × 576 pixels in total;
    2 pcs cabinets in 1 pc flight case, about 108 kg totally;
    Video processor equipped to gain more input signals, like VGA, DVI, HDMI, S-VIDEO, etc.


    Application:


    P5 outdoor advertising LED display is for outdoor advertising, with high resolution and brightness.


    Specifications:


    Type

    5 mm

    LED Type

    SMD2727

    Screen Size

    W 5.76 × H 2.88 m

    LED Module Size

    W 160 × H 160 mm

    LED Module Pixel

    W 32 × H 32 dots

    Screen Resolution

    W 1152 × H 576 pixels

    Cabinet Size

    W 960 × H 960 × D 165 mm

    Cabinet Weight

    32.2 kg/pc

    Material

    Aluminum waterproof cabinet with handle

    Cabinet Resolution

    W 192 × H 192 pixels

    Cabinet Quantity

    W 6 × H 3 = 18 pcs

    Drive IC

    MBI5020

    Drive Method

    1/8 scan constant current

    Luminance

    8000 CD/sq.m

    Video Processor

    VP10

    Input Signal

    VGA, DVI, HDMI, etc

    Power Supply

    5V 60A

    Brand

    Meanwell RSP-320-5

    Controller

    Novastar

    Package

    Flight case & plywood case




    5mm Outdoor LED Display Screen, HD Outdoor Waterproof LED Display, High Luminance P 5 Outdoor LED Display Panel
