Brand Name : | Dreamway |
Model Number : | P10 |
Certification : | CE,ROHS |
Price : | negotiable |
Payment Terms : | T/T, Western Union |
Supply Ability : | 2000sq.m/Month |
Delivery Time : | 20 days after receiving the deposit |

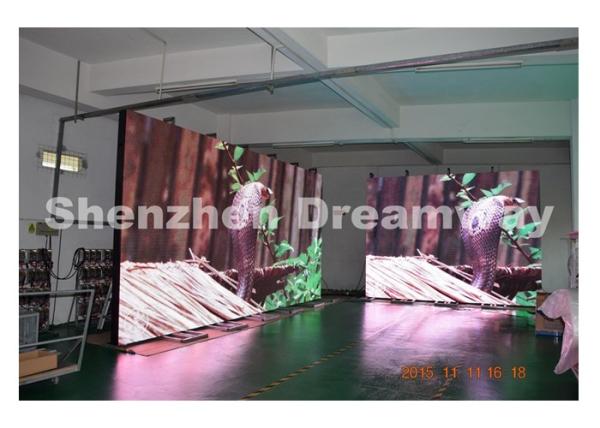

PH10 Outdoor Advertising LED Display 5.76 × 2.88 m DIP346 LED Type
Quick Detail:
1. DIP346 LED encapsulation;
2. EPISTAR LED chip;
3. Synchronous control;
4. High refresh rate;
5. Plywood case package;
6. 2 years warranty.
Detail Description:
Each cabinet is with 960 by 960 mm, 41 kg, 150 mm thickness;
LINKO power and signal connector used, good quality, easy
operation;
4 pcs 5V 40A power supplies equipped in one cabinet, Chuanglian
brand power.
Application:
This outdoor advertising LED display is for outdoor video
advertising, installed on shop plaza, building, etc.
Specifications:
Pixel Pitch | PH10 |
LED Type | DIP346 |
LED Composition | 1R 1G 1B |
Screen Size | W 5.76 × H 2.88 m |
Screen Resolution | W 576 × H 288 |
Module Size | W 160 × H 160 mm |
Cabinet Size | W 960 × H 960 × D 150 mm |
Cabinet Weight | 41 kg/pc |
Material | Steel waterproof cabinet with back door |
LED Module Quantity per Cabinet | W 6 × H 6 = 36 pcs |
Cabinet Quantity | W 6 × H 3 = 18 pcs |
Refresh Rate | ≥1000Hz |
Driving Method | 1/4 scan constant current |
Brightness | 6500 nits/sq.m |
Viewing Angle | 100 degrees |
Warranty | 2 years |
Power Supply | 220V / 60HZ |
Brand | Chuanglian |
Controller | Novastar |
Package | Plywood case |
