    Pub DIP346 LED Dance Floor P 10 Epistar 960×960 mm LED Cabinet

    Ask Lasest Price
    Brand Name : Dreamway
    Model Number : P10
    Certification : CE,ROHS
    Price : negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 2000sq.m/Month
    Delivery Time : 20 days after receiving the deposit
    • Product Details
    • Company Profile

    Pub DIP346 LED Dance Floor P 10 Epistar 960×960 mm LED Cabinet



    Pub DIP346 LED Dance Floor P 10 Epistar 960×960 mm LED Cabinet


    Quick Detail:

    1. DIP346 LED type;
    2. Epistar LED chip
    ;
    3. 960
    × 960 mm cabinet size;

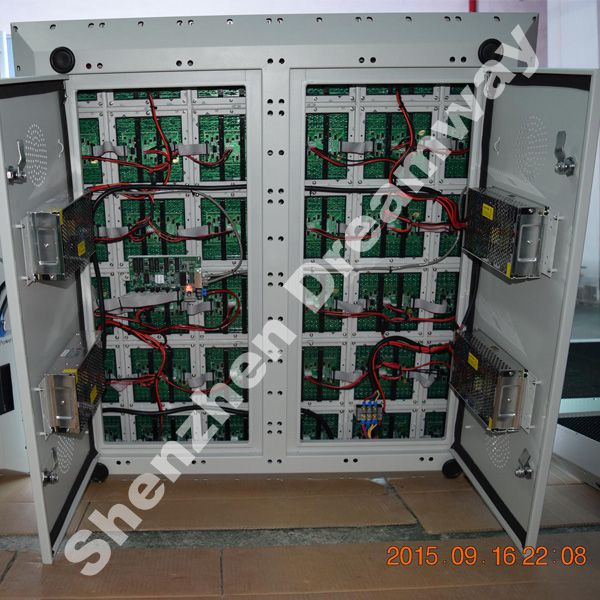

    4. Steel cabinet with special design
    ;
    5. Novastudio software;
    6. Aging 65 hours at least.



    Detail Description:

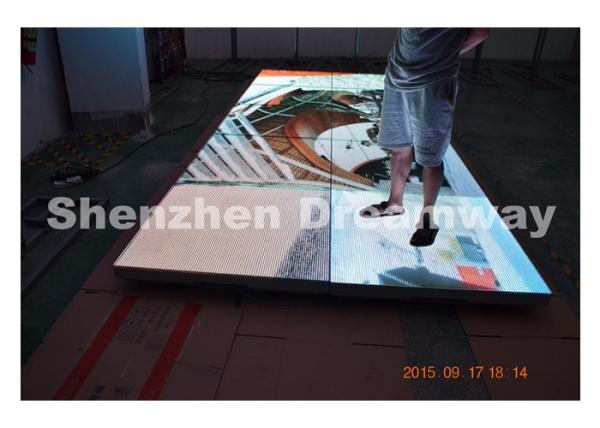

    This LED dance floor is P10 type, with 96 by 96 pixels each cabinet, about 57 kg/pc with cover;
    The cabinet is specially designed, with organic glass on the cover, and it could support people above;
    Controlled synchronously with NOVA, high refresh rate, stable performance.



    Application:

    This LED dance floor is for pub, shows, etc, indoor use.


    Specifications:

    Model

    PH10

    LED Composition

    1R1G1B

    LED Type

    DIP346

    LED Module Pixel

    W 16 × H 16 dots

    LED Module Size

    W 160 × H 160 mm

    Cabinet Size

    W 960 × H 960 × T 145 mm

    Cabinet Resolution

    W 96 × H 96

    Cabinet

    Steel cabinet with organic glass cover

    Color

    Gray

    Driving Method

    1/4 scan constant current

    Brightness

    6,000 nits/sq.m

    Weight

    about 57 kg/pc

    LED Chip

    EPISTAR

    Driving IC

    JXI5020

    Control Method

    Synchronous control

    Controller

    NOVASTAR

    Power Supply

    220V 60HZ

    Brand

    Chuanglian

    Warranty

    2 years

    Software

    NovaStudio






    Indoor LED Dance Floor, LED Dance Floor LED Display, LED Dance Floor for Pub
