Brand Name : | Dreamway |
Model Number : | P10 |
Certification : | CE,ROHS |
Price : | negotiable |
Payment Terms : | T/T, Western Union |
Supply Ability : | 2000sq.m/Month |
Delivery Time : | 20 days after receiving the deposit |
DIP346 Outdoor Advertising LED Display PH10 W 5.76 × H 1.92 m
Quick Detail:
1. 5.76 × 1.92 m screen size;
2. 960 × 960 mm cabinet dimension;
3. 6 × 2 pcs cabinets;
4. 4 pcs power supplies in a cabinet;
5. 4 pcs fans in each LED box;
6. Plywood box package.
Detail Description:

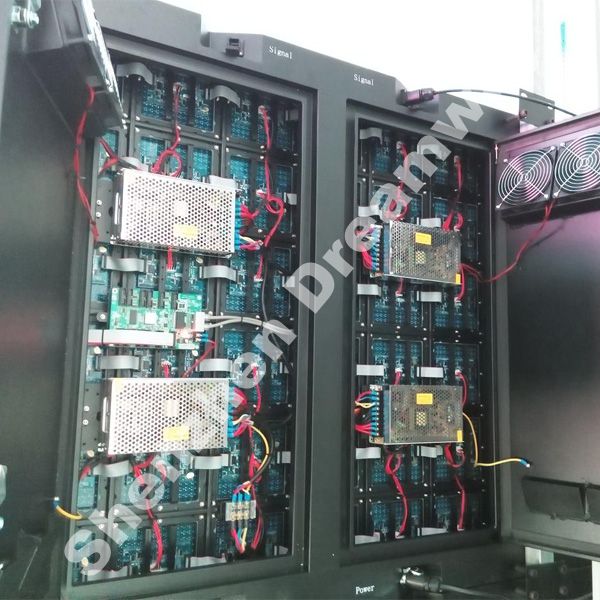

The screen dimension is W 5.76 × H 1.92 m, with 12 pcs cabinets in
total, about 42 kg/pc;
220 V power supply of Chuanglian brand, good working;
High refresh rate, 1 cabinet 1 controller, supporting only 96 × 96
dots.
Application:
This outdoor advertising LED display would be installed in Israel
for outdoor ads.
Specifications:
Model | P 10 |
LED Chip | Epistar |
LED Type | DIP346 |
Screen Size | W 5.76 × H 1.92 m |
LED Module Pixel | W 16 × H 16 |
LED Module Size | W 160 × H 160 mm |
Cabinet Size | W 960 × H 960 × D 150 mm |
Cabinet Weight | 42 kg/pc |
Material | Steel waterproof cabinet with back door |
Color | Black |
Brightness | More than 6,500 nits/sq.m |
Refresh Rate | ≥1200Hz |
Driving Method | 1/4 scan constant current |
Driving IC | JXI5020 |
Viewing Angle | 100 degrees |
Power Consumption (MAX) | about 700 W/sq.m |
Power Supply | 220V / 60HZ |
Power and Signal Connector | LINKO |
Controller | Novastar |
Package | Plywood case |
![]() |
