Brand Name : | Dreamway |
Model Number : | P2.5 |
Certification : | CE,ROHS |
Price : | negotiable |
Payment Terms : | T/T, Western Union |
Supply Ability : | 10,000PCS/Month |
Delivery Time : | 5 days after receiving the deposit |
SMD2121 2.5 mm led panel module 160 × 160 mm Size 1920 Hz Refresh Rate
Quick Detail:
1. 64 × 64 dots;
2. 160 × 160 mm size;
3. SMD2121 black LED;
4. Xinguang PCB;
5. 2038 high refresh rate IC;
6. About 1,000 nits.
Detail Description:

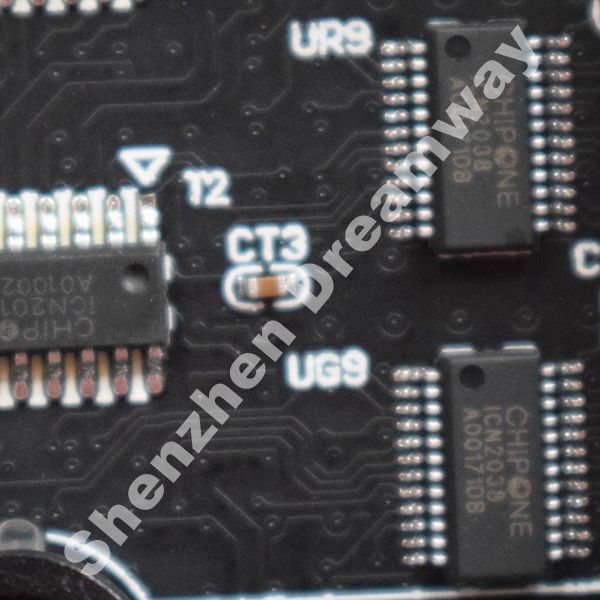

This type is made with Xinguang 1.6 mm thickness PCB, with top quality;
The refresh rate could be more than 1,920 Hz, no flicker during take photos or videos;
High resolution type is to offer you displaying effect like LCD.
Specifications:
Type | P2.5 |
LED Lamp | SMD2121 |
LED Composition | 1R 1G 1B |
LED Module Pixel | W 64 × H 64 |
LED Module Size | W 160 × H 160 mm |
Weight | 0.2 kg |
Drive Mode | 1/32 scan constant current |
Thickness | 1.5 cm |
Driving Voltage | 5V |
Drive IC | 2038 |
