    1R1G1B Epistar P10 Outdoor Full Color LED Display Signs For Advertising , 110V / 60HZ

    Ask Lasest Price
    Brand Name : Dreamway
    Certification : CE,ROHS
    Model Number : P10
    Price : negotiable
    Delivery Time : 20 days after receiving the deposit
    Payment Terms : T/T
    Supply Ability : 2000sq.m/Month
    • Product Details
    • Company Profile

    1R1G1B Epistar P10 Outdoor Full Color LED Display Signs For Advertising , 110V / 60HZ


    Full Color Outdoor Advertising LED Display, P10 LED Screen Outdoor


    Quick Detail:


    1. Epistar brand chip;

    2. MBI5024 LED driver IC;

    3. 1R1G1B;

    4. 10,000 dots / sq.m;

    5. 16×16 dots per module;

    6. 160×160 mm module dimension.


    Detail Description:


    Auto brightness adjustment is no problem;

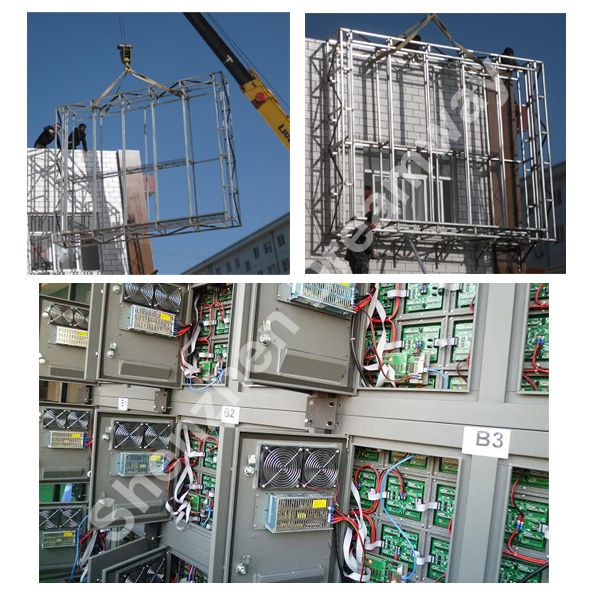

    It is made up with 5 by 5 PCS LED boxes, all of which is 960 by 960 mm;

    More than 7500 nits per square meter, totally visible under strong sunlight.


    Application:


    It is mounted on wall for outdoor advertising.


    Specifications:


    Pixel Pitch

    10mm

    Pixel Composition

    1R1G1B

    LED Type

    DIP346

    Pixel

    10,000 dots/sq.m

    Module Pixel

    W 16 × H 16

    Module Size

    W 160 × H 160 mm

    LED Box Dimension

    W 960 × H 960 mm

    LED Box Colour

    Black

    Material

    Steel waterproof cabinet

    Drive Mode

    1/4 scan constant current

    Luminance

    ≥7500 nits/sq.m

    Refresh Rate

    ≥800Hz

    Out of Control Dot Rate

    <0.0001

    Earth Leakage Current

    <2mA

    MTBF

    >5,000 hours

    LED Life Time

    >100,000 hours

    Power Source

    110V/60HZ and 220V/50HZ convertible

    Humidity

    10%~90%

    Control Method

    Synchronous control with PC on

    Operation System

    Win2000 / XP / Vista



    High Resolution Outdoor LED Display Advertising, Outdoor Advertising LED Display Screen, Outdoor Advertising LED Display Price
