    Epistar Outdoor Advertising LED Display

    Ask Lasest Price
    Brand Name : Dreamway
    Certification : CE,ROHS
    Model Number : P16
    Price : negotiable
    Delivery Time : 20 days after receiving the deposit
    Payment Terms : T/T
    Supply Ability : 2000sq.m/Month
    • Product Details
    • Company Profile

    Epistar Outdoor Advertising LED Display


    1R1G1B Outdoor Advertising LED Display of 16mm with 256×256mm


    Quick Detail:

    1. 1R1G1B, 16×16 dots LED module;
    2. 110° horizontal view angle;
    3. Synchronous control;
    4. Nova sending and receiving card;
    5. -20~+60℃ working temperature;
    6. More than 100,000 hours life span.


    Detail Description:

    Although composed only with 1R1G1B, it is with high luminance of 7500 nits per square meter;
    Epistar LED chip, with MBI5024 driving IC, long working life;
    CE standard power sources make sure there is little phenomenon of burning out.


    Application:

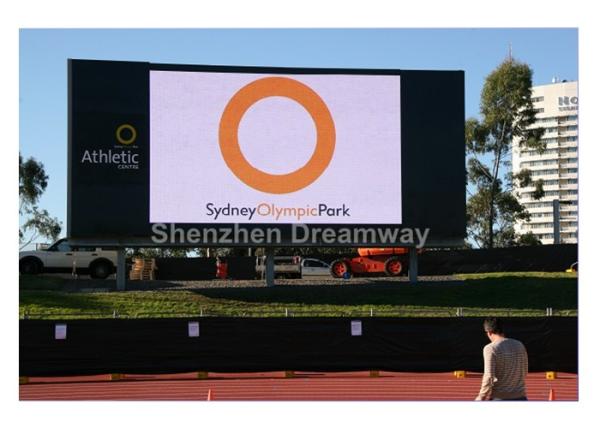

    Outdoor LED display is installed on park, shop, swimming pool for ads.


    Specifications:

    Type

    P16

    LED Composition

    1R1G1B

    LED Type

    DIP546

    Pixel

    3,906 dots/sq.m

    LED Module Pixel

    W 16 × H 16 = 256 dots

    LED Module Size

    W 256 × H 256 mm

    Cabinet Size

    W 1024 × H 768 mm

    Cabinet Color

    Black

    Cabinet Material

    Steel water resistance

    Driving Method

    Static scan

    Brightness

    More than 7500 nits/sq.m

    Refresh Rate

    More than 800Hz

    Out of Control Dot Rate

    <0.0001

    Earth Leakage Current

    <2mA

    MTBF

    >5,000 hours

    Life Span

    >100,000 hours

    Power Source

    110V/60HZ and 220V/50HZ interchangeable

    Humidity

    10%~90%

    Control Method

    Synchronization

    Operation Software

    NovaStudio




    Large Outdoor Advertising LED Display, RGB Outdoor Advertising LED Display, Outdoor Advertising LED Display with IP65
