    Building Wall Mounted PH16 RGB Outdoor Advertising LED Display 120° With Win2000 / XP / Vista System

    Ask Lasest Price
    Brand Name : Dreamway
    Certification : CE,ROHS
    Model Number : P16
    Price : negotiable
    Delivery Time : 20 days after receiving the deposit
    Payment Terms : T/T
    Supply Ability : 2000sq.m/Month
    • Product Details
    • Company Profile

    Building Wall Mounted PH16 RGB Outdoor Advertising LED Display 120° With Win2000 / XP / Vista System

    Wall Mounted P16 Outdoor Advertising LED Display with OPTO / SILAN Chip


    Quick Detail:


    1. OPTO / SILAN famous chip;

    2. 2R1G1B composition;

    3. 120° view angle;

    4. Over 8000 cd/sq.m;

    5. MBI5024 LED drive IC;

    6. 2 years quality guarantee.


    Detail Description:

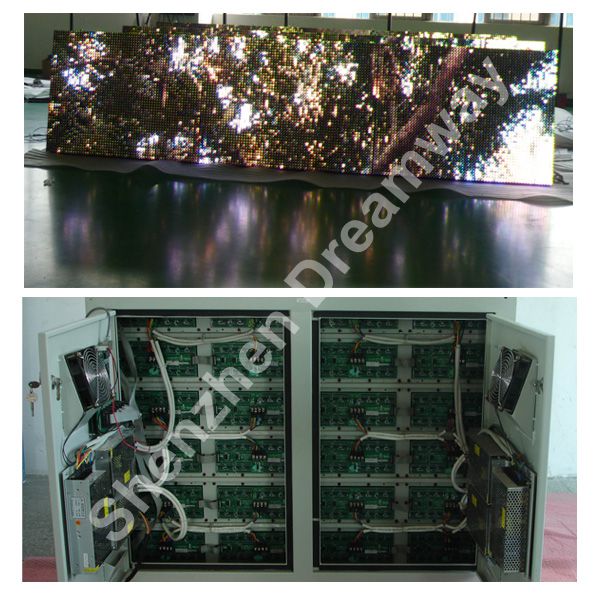

    Synchronization control with CAT-5e network cable; Control PC could be put at the back of display to send contents and remote control could be realized by 3G, more competitive than using optical fiber; 1PC LED box, 1PC receiving card, making sure of good effect.


    Application:

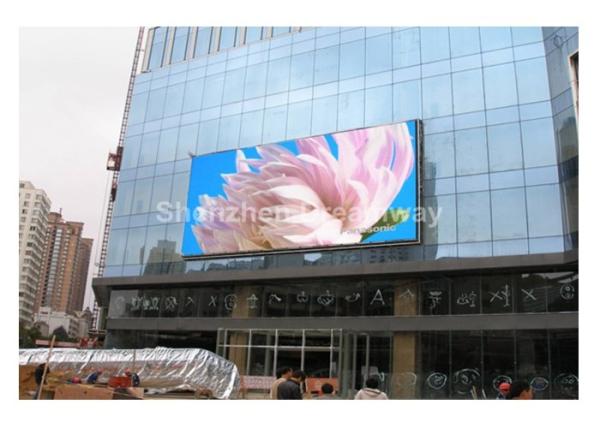

    It is mounted on wall to play ads.


    Specifications:


    Model

    PH16

    LED Composition

    2R1G1B

    LED Type

    DIP546

    Pixel

    3,906 dots/sq.m

    Module Pixel

    W 16 × H 16

    Module Size

    W 256 × H 256 mm

    Cabinet Dimension

    W 1024 × H 768 mm

    Cabinet Color

    Black

    Cabinet Material

    Steel water resistance

    Driving Mode

    Static scan

    Brightness

    ≥8000 CD/sq.m

    Refresh Rate

    ≥800Hz

    Out of Control Dot Rate

    <0.0001

    Earth Leakage Current

    <2mA

    MTBF

    >5,000 hours

    LED Life Span

    >100,000 hours

    Power Supply

    110V/60HZ and 220V/50HZ interchangeable

    Humidity

    10%~90%

    Control Method

    Synchronization

    Operation System

    Win2000 / XP / Vista



    Wall Mounted Outdoor Advertising LED Display, Outdoor Advertising LED Display Screen, Outdoor Advertising LED Display Panel
