    2R1G1B DIP Outdoor Advertising LED Screen Display 8000 CD / Commercial Center P16 LED display

    Ask Lasest Price
    Brand Name : Dreamway
    Certification : CE,ROHS
    Model Number : P16
    Price : negotiable
    Delivery Time : 20 days after receiving the deposit
    Payment Terms : T/T
    Supply Ability : 2000sq.m/Month
    • Product Details
    • Company Profile

    2R1G1B DIP Outdoor Advertising LED Screen Display 8000 CD / Commercial Center P16 LED display



    P16 Outdoor Advertising LED Display, 2R1G1B Outdoor LED Screen Advertising


    Quick Detail:

    1. OPTO / SILAN LED chip;
    2. 6,944 dots/sqm;
    3. R9 GB10×12 chip dimension;
    4. MBI5024 driving IC;
    5. 256×256 mm module size;
    6. More than 8000 nits/sq.m.


    Detail Description:

    This type is popular in those big projects, with highest brightness of 8000 CD/sq.m;
    Big chip size ensures bigger viewing angle;
    NovaStudio software control is with little joggle, nice displaying effect.


    Application:

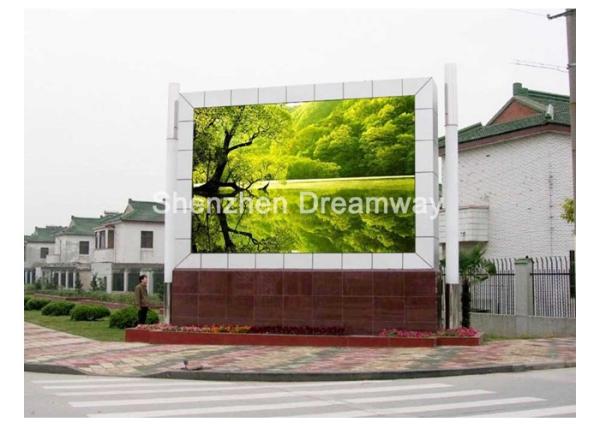

    It is for outdoor advertising, generally mounted on wall, shopping mall, commercial center, etc.


    Specifications:


    Pixel Pitch

    16mm

    Pixel Composition

    2R1G1B

    LED Encapsulation

    DIP546

    Pixel

    3,906 dots/sq.m

    Module Pixel

    W 16 × H 16

    Module Size

    W 256 × H 256 mm

    Standard Cabinet Size

    W 1024 × H 768 mm

    Cabinet Color

    Black

    Cabinet Material

    Steel waterproof

    Drive Method

    Static scan

    Brightness

    ≥8000 nits/sq.m

    Refresh Rate

    ≥800Hz

    Out of Control Dot Rate

    <0.0001

    Earth Leakage Current

    <2mA

    MTBF

    >5,000 hours

    LED Life Span

    >100,000 hours

    Power Supply

    110V/60HZ and 220V/50HZ interchangeable

    Humidity

    10%~90%

    Control Method

    Synchronous control with PC on

    Operation System

    Win2000 / XP / Vista



    P16 Outdoor Advertising LED Display, High Brightness Outdoor LED Display Advertising, Advertising Outdoor LED Display
