    SMD 3528 1R1G1B Full Color Indoor LED Display Screen Module with 5mm Pixel Pitch

    Ask Lasest Price
    Brand Name : Dreamway
    Certification : CE,ROHS
    Model Number : P5
    Price : negotiable
    Delivery Time : 5 days after receiving the deposit
    Payment Terms : T/T
    Supply Ability : 10,000PCS/Month
    • Product Details
    • Company Profile

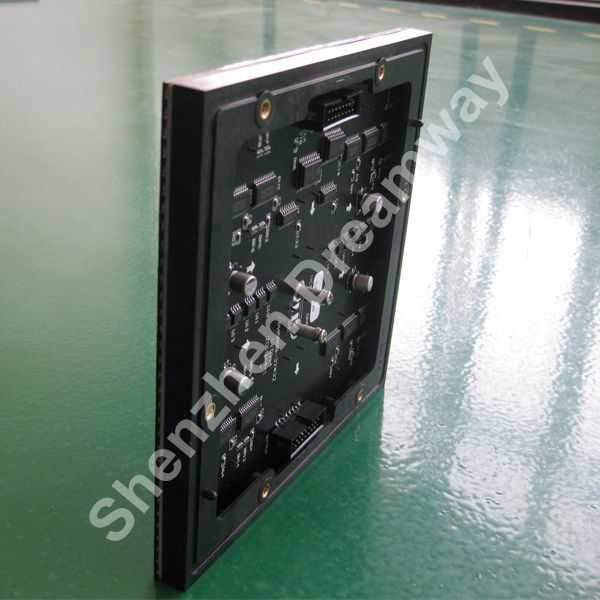

    SMD 3528 1R1G1B Full Color Indoor LED Display Screen Module with 5mm Pixel Pitch


    SMD3528 1R1G1B Indoor LED Display Module with 5mm Pixel Pitch


    Quick Detail:


    1. 32×32 dots;

    2. 160×160 mm;

    3. 1/8 scan constant current;

    4. SMD3528 LED type;

    5. 1R1G1B;

    6. 2 years warranty.


    Detail Description:


    1/8 constant current scanning, high luminance with 3500 nits;

    Epistar LED chip, high quality;

    Factory wholesale price.


    Specifications:


    Pixel Pitch

    5mm

    LED Composition

    1R1G1B

    LED Type

    SMD3528

    Module Pixel

    W 32 × H 32

    Module Size

    W 160 × H 160 mm

    Module Power Consumption

    28W

    Drive Method

    1/8 scan constant current

    Driving Voltage

    5V

    MTBF

    >5,000 hours

    Life Span

    >100,000 hours




    P5 LED Display Module, LED Module Display Indoor Use, Indoor LED Display Module Price
