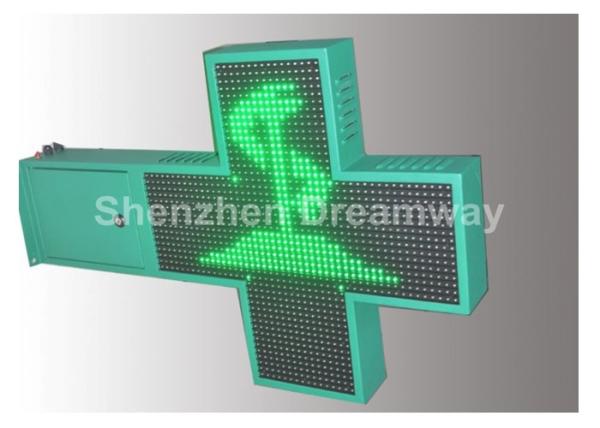

1G P16 Outdoor LED Pharmacy Cross Display Waterproof DIP546 , 2500 CD / sq.m

    Buy cheap 1G P16 Outdoor LED Pharmacy Cross Display Waterproof DIP546 , 2500 CD / sq.m from wholesalers

    Buy cheap 1G P16 Outdoor LED Pharmacy Cross Display Waterproof DIP546 , 2500 CD / sq.m from wholesalers
    • Buy cheap 1G P16 Outdoor LED Pharmacy Cross Display Waterproof DIP546 , 2500 CD / sq.m from wholesalers
    • Buy cheap 1G P16 Outdoor LED Pharmacy Cross Display Waterproof DIP546 , 2500 CD / sq.m from wholesalers
    • Buy cheap 1G P16 Outdoor LED Pharmacy Cross Display Waterproof DIP546 , 2500 CD / sq.m from wholesalers
    • Buy cheap 1G P16 Outdoor LED Pharmacy Cross Display Waterproof DIP546 , 2500 CD / sq.m from wholesalers

    1G P16 Outdoor LED Pharmacy Cross Display Waterproof DIP546 , 2500 CD / sq.m

    Ask Lasest Price
    Brand Name : Dreamway
    Certification : CE,ROHS
    Price : negotiable
    Delivery Time : 20 days after receiving the deposit
    Payment Terms : T/T
    Supply Ability : 200PCS/Month
    Model Number : P16
    • Product Details
    • Company Profile

    1G P16 Outdoor LED Pharmacy Cross Display Waterproof DIP546 , 2500 CD / sq.m


    1G P16 Outdoor LED Pharmacy Cross Display with Waterproof LED Box


    Quick Detail:


    1. 16×8 dots;

    2. 256×128 mm LED module;

    3. Steel water resistance cabinet;

    4. Epistar LED;

    5. DIP546 LED type;

    6. 2 years warranty.


    Detail Description:


    It is composed of 1PC green LED;

    Could show special effects, different languages, date, temperature, animation, etc;

    RS232 communication interface.


    Application:


    It is used in hospital, pharmacy, medical center, etc.


    Specifications:


    Pixel Pitch

    16mm

    LED Composition

    1G

    LED Type

    DIP546

    Resolution

    3,906 dots/sq.m

    Module Pixel

    W 16 × H 8

    Module Size

    W 256 × H 128 mm

    Cabinet Size

    W 808 × H 848 mm

    Cabinet Material

    Steel waterproof cabinet

    Drive Method

    1/4 scan constant current

    Brightness

    ≥2500 CD/sq.m

    Refresh Rate

    ≥200Hz

    Out of Control Dot Rate

    <0.0001

    Earth Leakage Current

    <2mA

    MTBF

    >5,000 hours

    LED Life Span

    >100,000 hours

    Power Supply

    110V/60HZ and 220V/50HZ interchangeable

    Humidity

    10%~90%

    Control Method

    Asynchronous control

    Operation System

    Win2000 / XP / Vista


    Outdoor LED Pharmacy Cross Display, P16 LED Pharmacy Cross Display, Wholesale LED Pharmacy Cross Display
